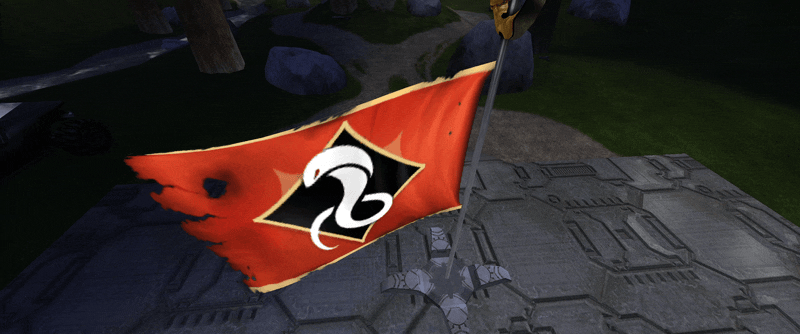

Wind tags describe the base speed and directional variability of wind in a BSP cluster as a part of its assigned weather palette. Wind affects the movement of point_
You can think of wind as being built up with layers:
- The general wind direction and strength is defined in your palette entry.
- Variability in the speed and angle are defined in this tag.
- Local variation (wiggle) may be ratio-blended or added after.
- For weather particle systems, there is added motion unrelated to wind.
All elements of variability and random weather motion are framerate-dependent so your custom wind and weather should be tested at typical playing framerates to ensure they look realistic. It can be easier to see the effects of wind settings by setting framerate_throttle 1 in the console.
Variation area
You can vary the overall wind direction over time within an angular range defined by the variation area, relative to the weather palette entry's direction. This is a global variation that applies to all particles.
Unfortunately, the rate of change is hard-coded and framerate-dependent rather than tied to the 30 Hz simulation rate. This means the wind direction will change faster the higher your framerate is, affecting Gearbox and later editions of the game. Regardless, using this variation feature allows your wind to look more natural even at high FPS. Values around 30-60 and 10-20 degrees are recommended for yaw and pitch respectively.

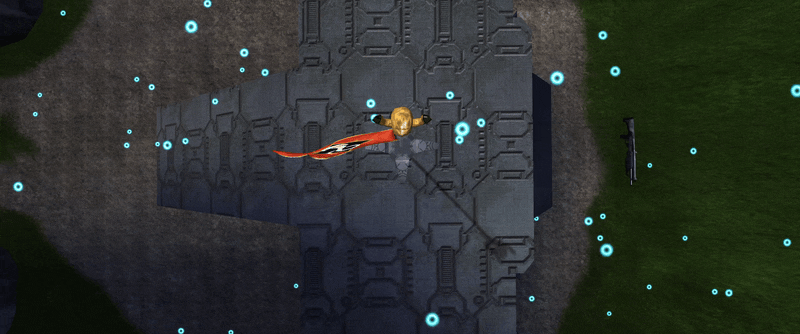

Variation area only, at uncapped FPS and yaw range 180 degrees.
Local variation
Local variation applies smaller-scale changes to particle directions variation. This can be imagined like a vibrating wiggly field that all the particles are embedded in, stretching and squeezing locally to give the impression of turbulence. Like variation area, this is framerate-dependent so higher FPS means faster local variation.
Local variation also has a roughly +x -y +z directionality bias which is hard-coded. The bias is similar to the weather_

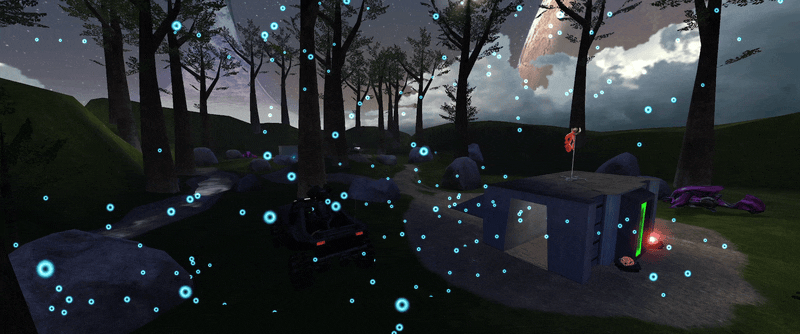

Local variation only, at 30 FPS with rate 1 and velocity 2.
Weakly weighted local variation is generally not very noticeable on small groups of particles or short lived particles. If you want to have a strong local variation weight while also maintaining overall directionality, increase your wind palette entry's wind magnitude. However, this also results in scaling local variation magnitude for particles using simple wind!
Structure and fields
| Field | Type | Comments | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| velocity | Bounds | Upper and lower bounds for base wind speed and local variation speed. Technically, this is not a true "velocity" because it is not a vector; wind direction is set in the BSP's weather palettes using Sapien. This wind speed may also be scaled by the palette entry's wind magnitude and slowed by the damping factor below for particles using damped wind, however this affects just the base wind speed and not how this range scales local variation. | |||||||||
| |||||||||||
| variation area | Euler2D | Sets the horizontal (y) and vertical (p) angle ranges that wind will vary within. For example, a yaw of | |||||||||
| |||||||||||
| local variation weight | float | Sets the strength of local variation. The behaviour of this field depends on whether particles use simple wind. By default, this acts as a blending ratio between full base wind ( | |||||||||
| local variation rate | float | Determines the frequency of local variation changes. Lower values in the range of | |||||||||
| damping | float | Scale wind influence on point_ | |||||||||
Acknowledgements
Thanks to the following individuals for their research or contributions to this topic:
- Conscars (Testing and documenting tag features)
- Kavawuvi (Invader tag definitions)
- MosesOfEgypt (Tag structure research)
