weather_particle_system

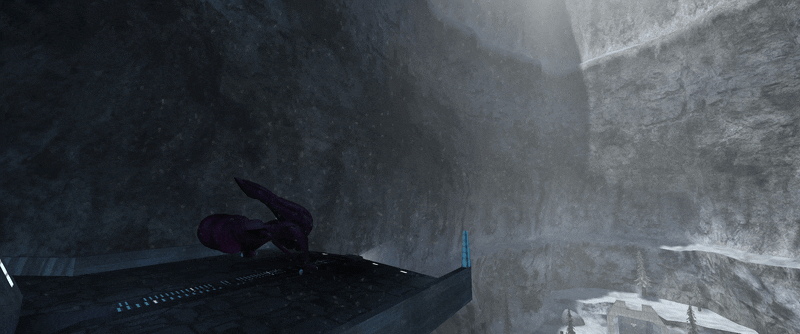

Weather particle systems define the appearance, density, and physical behaviour of weather like rain and snow.

Usage

To use weather in your level, you must create weather palette entries in Sapien referencing a weather particle system and optionally wind. You then assign these entries to BSP clusters within the level, allowing different areas to have different weather. Areas under overhangs and roofs which should not have weather can be masked with weather polyhedra, added while modeling the level.

Simulation

Each weather particle type get simulated in a cube the size of its fade out end distance, originating at the world's 0,0,0 origin point. It can be visualized by enabling debug_point_physics. Particles wrap around when they reach the edge, making the simulation tileable. All other weather particles in the level are simply a trick of rendering.

Individual particles are simulated according to their point_physics and the effects of wind, with the exception of collision detection. The simulation resets when the weather is hidden then becomes visible again, such as when moving between clusters, and you may see the particles begin to accelerate again under the influence of wind friction or gravity. Because the particles wrap around at the edge of the cube, they will retain any velocity they had and continue to accelerate under gravity. Ensure that your point_physics have sufficient air friction to slow the particles down.

Limits

The game can simulate up to 512 weather particles. There is therefore a tradeoff between particle count and view distance: if your view distance is large, a high density is not possible because the budget of 512 particles must be spread out in an exponentially larger simulation cube. Here's a table summarizing the maximum densities for various fade out end distances:

Fade out distance (wu)	Max achievable density (particles/cubic wu)
0.5	4096
1	512
2	64
4	8
8	1

Setting the particle count higher than these values will not achieve a higher density. When a weather particle system has multiple particle types, the first type gets first "dibs" on the particle budget. If it uses up all the budget then the following types' particles will not be present.

If you require a high density of particles, simply include multiple particles spaced out within the sprite texture and set the random rotation flag. The stock snow sprite does this and it's fairly convincing. If you need to increase the particle radius to accomodate this, don't forget to adjust density accordingly.

Particle acceleration

Use the acceleration parameters to give weather particles their own acceleration, independent of any external forces. Particles have an individual acceleration vector which can change direction over time, and the amount of acceleration can vary too. This is used to simulate particles that move on their own like flying insects.

Particles with similar acceleration parameters to c10's beetles. There is no wind in this scenario.

Added motion

The game adds fixed motion to weather particles each rendered frame, unrelated to wind (global or local variation) or acceleration. Added motion is not "true motion" for the purposes of particle orientation, so you may see velocity-oriented particles unaligned with their apparent direction of movement.

The direction is "random" and unique to each particle, unchanging after creation. However, the algorithm the game is using for this introduces some likely unintended bias in the direction. The first 128 particles created have a general +x -y +z direction, similar to the bias in wind local variation. At 256 particles, some particles now move in the -x direction too. At the limit of 512, there is a good distribution of horizontal directions but the particles still move upwards on average. The bias is noticeable at high framerates, but not at 30 FPS. When you open the console in Standalone, which pauses the simulation, this added motion is apparent.

128 weather particles showing a bias in added motion, at 1000 FPS.

Speculating, this motion may have been added as a cheap way to avoid noticeable patterns like the same rain drop falling in the same place, since the simulation "wraps around".

Known issues

When the player is within a dense fog with a nearby opaque distance, weather particles will stop drawing even if set for the cluster containing fog. Ensure the opaque distance is sufficiently far away if weather particles in fog are desired.
Some features of this tag are framerate-dependent. See tag fields.
The added motion bias, described earlier.
Changing acceleration eventually gets stuck at 0 if 0 is the minmum bound.

	Function/global	Type
	`(debug_point_physics [boolean])` Renders green or red markers wherever point_physics are being simulated. This includes flags, antenna, contrails, particles, and particle_systems. For weather_particle_system, markers are only shown in their simulation cube and while the `weather` global not disabled. Red markers indicate point_physics with the collides with structures flag, which are more computationally expensive. It can help to enable `framerate_throttle` for these markers to render consistently.	Global
	`(debug_sprites [boolean])` Renders 2D sprite effects like particles and weather_particle_system with white triangle outlines. This also displays some sprite statistics at the top of the screen (coverage and big sprites count).	Global
	`(render_psystems [boolean])` Toggles the rendering of particle_systems and weather_particle_system.	Global
	`(weather [boolean])` Toggles the rendering of all weather_particle_system. Defaults to `true`.	Global

Structure and fields

Field Type Comments

flags

bitfield

Unused

particle types

Block

HEK max count: 8

A list of particle types that are present in this weather system. As an example, the c10 swamp weather uses one type for rain and two types for flying insects. Note that the first particle type may use up the 512 weather particle budget if it's too dense, and other types will not render.

Particle types with identical fields will not spawn at the same locations, so this cannot be used to combine sprites in different orientations.

Processed during compile

Field Type Comments

name

TagString

A name for the particle type. This can be anything and is only used to make identifying the type in Guerilla easier.

flags

bitfield

Boolean settings for this particle type.

Flag	Mask	Comments
interpolate colors in hsv	`0x1`	When the game gives particles a random color between the color lower bound and color upper bound, it will interpolate in HSV space rather than RGB. This results in intermediate hues being represented rather than the muddy mix that sometimes comes from blending in RGB.
along long hue path	`0x2`	When interpolate colors in hsv is enabled, this causes the hue interpolation to go the longer direction. For example, if blue and green are bounds then purple, red, orange, and yellow will be present.
random rotation	`0x4`	Particles spawn with random rotation, allowing for more visual variation despite using the same sprite. This applies no matter the render mode.

fade in start distance

float

Unit: world units

The distance at which particles begin to fade in. This should be fairly close to the camera/player, but avoid having no fade at all or a distance of 0 since it can distracting for particles to come very close to the camera.

fade in end distance

float

Unit: world units

The fade in distance where particles have reached full opacity.

fade out start distance

float

Unit: world units

The distance where distant particles begin to fade out.

fade out end distance

float

Unit: world units

The distance where distant particles fully fade out. This determines the dimensions of the particle type's simulation cube and affects the maximum achievable particle density.

fade in start height

float

Unit: world units

A world-space Z height where particles begin to fade in. Think of this as the lower bound. If you want the weather to be present throughout the level, set this and the fade in end height to some large negative number like -500.

fade in end height

float

Unit: world units

A world-space Z height where particles reach full opacity.

fade out start height

float

Unit: world units

A world-space Z height where particles begin to fade out again.

fade out end height

float

Unit: world units

A world-space Z height where particles fully fade out. If you want the weather to be present throughout the level, set this and the fade out start height to some large positive number like 500.

particle count

Bounds

Unit: particles per cubic world unit

Sets the density of particles for this type. All particle types must share the 512 particle budget, so arbitrarily high densities cannot be achieved for a given fade out end distance.

Field	Type	Comments
min	`float`
max	`float`

physics

TagDependency: point_physics

A reference to a point_physics which controls physical properties of the weather particles, such as their density, air friction, and more.

acceleration magnitude

Bounds^?

The amount of "forward" acceleration for each particle, used for particles that can accelerate on their own like c10's flying insects. Particles will be initialized with a random acceleration in this range. The particles' point_physics should have some air friction to avoid the particles accelerating indefinitely. Set the min/max to 0 if you don't want the particles to accelerate on their own (e.g. wind and rain).

However, if you intend to have acceleration and it changes with acceleration_change_rate, ensure the minimum magnitude is non-zero. For some reason, once particles randomly reach an acceleration of 0, they get stuck there and will not change back to higher values in the range, resulting in all acceleration eventually stopping in the weather particle system. This happens sooner at higher FPS.

acceleration turning rate

float

Controls how quickly the particles change their forward direction. Setting this to 0 means they will always accelerate in the same direction, while numbers like 0.2 cause the particles to change direction and "wander". Turning is unaffected by the particle's visual rotation rate field.

This rate is framerate-dependent so particles will turn faster at higher FPS. This may result in particles not wandering as desired since they do not point in a given direction for long enough. Values up to 0.5 are recommended when targeting non-Xbox platforms so the turning is noticeble.

acceleration change rate

float

Sets the rate of change in the amount of acceleration magnitude, between the bounds specified. If set to 0 the particles will only have the acceleration they were initialized with, while a value like 0.2 means they will sometimes speed up or slow down.

Like the turning rate, this is framerate-dependent. Values higher than 0.5 at high FPS result in the acceleration changing too frequently for noticeable speed changes in the particles.

particle radius

Bounds^?

Unit: world units

Scales the size of the particles, with the size being chosen randomly from this range. This is not purely a visual setting but affects the mass and surface area of the simulated particle, and therefore how it moves.

animation rate

Bounds^?

Unit: frames per second

If the sprite bitmap has sequences, this determines the framerate bounds of the animation. Avoid negative values, which cause flickering in the particles.

rotation rate

Bounds

Unit: degrees per second

Sets the rotation rate of sprites, which will randomly be in either clockwise or counter-clockwise direction. This applies no matter the render mode, and does not affect acceleration if present.

Field	Type	Comments
min	`float`
max	`float`

color lower bound

ColorARGB

Lower bound for random particle color interpolation. The colors are multiplied against the sprite texture, and the alpha controls opacity of the particle. Set these colors to white if you don't want any color variation.

Field	Type	Comments
alpha	`float`
red	`float`
green	`float`
blue	`float`

color upper bound

ColorARGB^?

Upper bound for random particle color interpolation.

sprite size

float

Cache only

sprite bitmap

TagDependency: bitmap

Non-null

A bitmap used for the particles, which must be sprites type. This bitmap can contain multiple sequences for random variation and animated particles.

render mode

enum

Sets the orientation of particle sprites.

Option	Value	Comments
screen facing	`0x0`	Particles will face directly toward the viewer, ideal for effects like smoke and snow.
parallel to direction	`0x1`	Particles will be oriented along the direction of movement, facing the camera but only rotating around the axis of movement. This type is ideal for particles with trails like rain and sparks. In the sprite texture, right is the forward direction.
perpendicular to direction	`0x2`	Particles will be oriented perpendicular to the direction of movement, so will be seen face-on when the particle is moving toward or away from the camera.

render direction source

enum

Determines the direction to use for directional sprite orientations (parallel and perpendicular).

Option	Value	Comments
from velocity	`0x0`	Particles sprites are oriented relative to their velocity vector. This is generally what you want, even for particles with acceleration. The random hard-coded motion added to weather particles
from acceleration	`0x1`	Particle sprites are oriented relative to their acceleration vectors, making it look like the sprite is pointing in the direction it's trying to move. This should only be used when acceleration turning rate is low or else the rotation of sprites will be very jittery. The flying insect particles for c10 don't use this setting.

not broken

uint32

Cache only

shader flags bitfield

Flag	Mask	Comments
sort bias	`0x1`
nonlinear tint	`0x2`
don't overdraw fp weapon	`0x4`

framebuffer blend function

enum

Sets how the particle will blend against the background. You'll usually want alpha blend for solid particles like snow, or add for glowing particles like embers. For alpha blend make sure your sprite bitmap has an alpha channel.

Option	Value	Comments
alpha blend	`0x0`
multiply	`0x1`
double multiply	`0x2`
add	`0x3`
subtract	`0x4`
component min	`0x5`
component max	`0x6`
alpha multiply add	`0x7`

framebuffer fade mode

enum

Sets how sprites fade based on viewing angle. For directional orientations, fade when perpendicular can help avoid seeing the sprite as a spinning 2d plane when viewed edge-on.

Option	Value	Comments
none	`0x0`	The faces do not fade by viewing angle.
fade when perpendicular	`0x1`	The faces fade out when viewed edge-on.
fade when parallel	`0x2`	The faces fade out when viewed flat to the camera.

map flags

bitfield

Flag controlling if the texture is filtered.

Flag	Mask	Comments
unfiltered	`0x1`	Texture sampling is unfiltered, resulting in aliasing at a distance and a blocky pixelated look up close.

bitmap

TagDependency: bitmap

Secondary map reference used to color the particles, by multiply. This map's UV coordinates can be animated along each axis and rotated, with the fields working as you would expect from a shader tag.

anchor

enum

Determines how the secondary map is positioned. If with primary, the sprite is multiplied atop each weather particle and follows its render mode orientation. The zsprite setting has unknown usage and may not apply to weather particles.

Option	Value	Comments
with primary	`0x0`	Positioned relative to each particle.
with screen space	`0x1`	Positioned relative to the screen.
zsprite	`0x2`

flags 1

bitfield^?

Flag controlling if the texture is filtered.

u animation source

enum

Function source for U animation. It's unclear what this would be connected to and may be unused.

Option	Value	Comments
none	`0x0`
a out	`0x1`
b out	`0x2`
c out	`0x3`
d out	`0x4`

u animation function

enum

An animation function which allows the secondary bitmap to scroll in the U axis.

Option	Value	Comments
one	`0x0`
zero	`0x1`
cosine	`0x2`
cosine variable period	`0x3`
diagonal wave	`0x4`
diagonal wave variable period	`0x5`
slide	`0x6`
slide variable period	`0x7`
noise	`0x8`
jitter	`0x9`
wander	`0xA`
spark	`0xB`
